Description
SKU | RZR-31503 |
---|---|
Magnification | 3 – 15 |
Objective Lens Diameter | 50 mm |
Eye Relief | 3.8 inches |
Field of View | 35.3-7.0 ft/100 yards |
Tube Size | 30 mm |
Turret Style | Locking/Zero Stop |
Windage Turret Style | Capped |
Adjustment Graduation | .10 MRAD |
Travel per Rotation | 6 MRAD |
Max Elevation Adjustment | 23 MRAD |
Max Windage Adjustment | 23 MRAD |
Parallax Setting | 20 yards to infinity |
Length | 13.3 inches |
Weight | 20.5 oz |
Riflescope Manual (.pdf) | Download PDF |
Reticle Manual (.pdf) | Download PDF |
- Sunshade
- Lens Covers
- Lens Cloth
- CR2032 battery
Lengths | |||||
L1 | L2 | L3 | L4 | L5 | L6 |
13.6 | 2.6 | 2.0 | 6.2 | 3.7 | 2.0 |
Heights | |
H1 | H2 |
2.32 | 1.7 |
Dimensions measured in inches.
OPTICAL FEATURES |
|
HD Optical System | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission. |
XRPlus Fully Multi-Coated | Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness. |
APO System | Index-matched lenses correct color across the entire visual spectrum. |
Optically Indexed Lenses | Deliver optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction. |

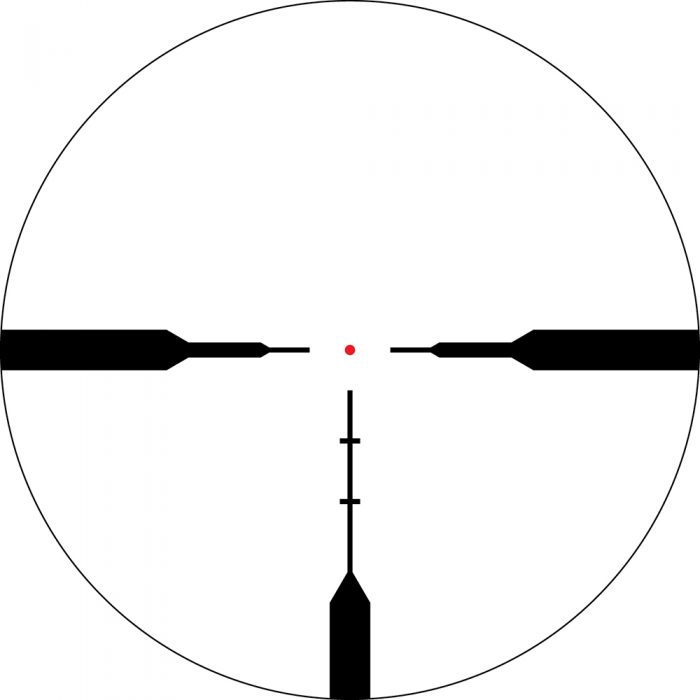

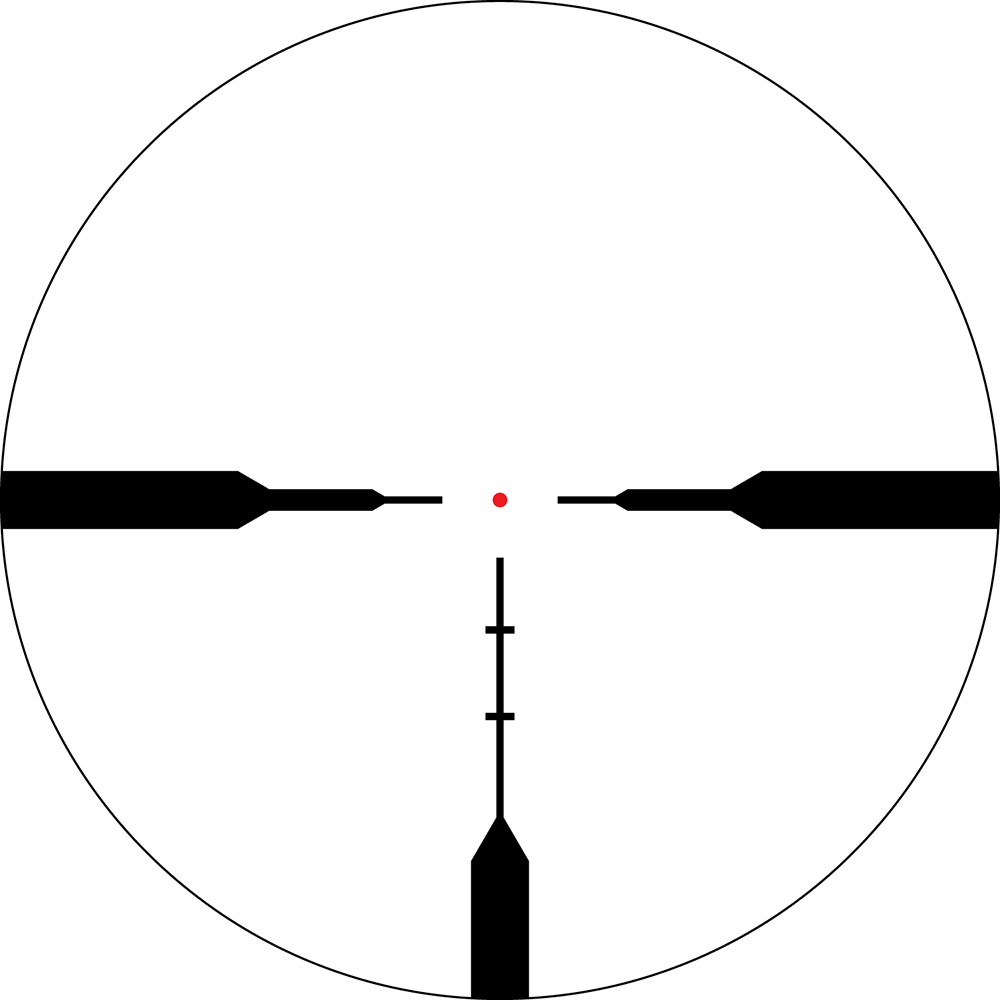

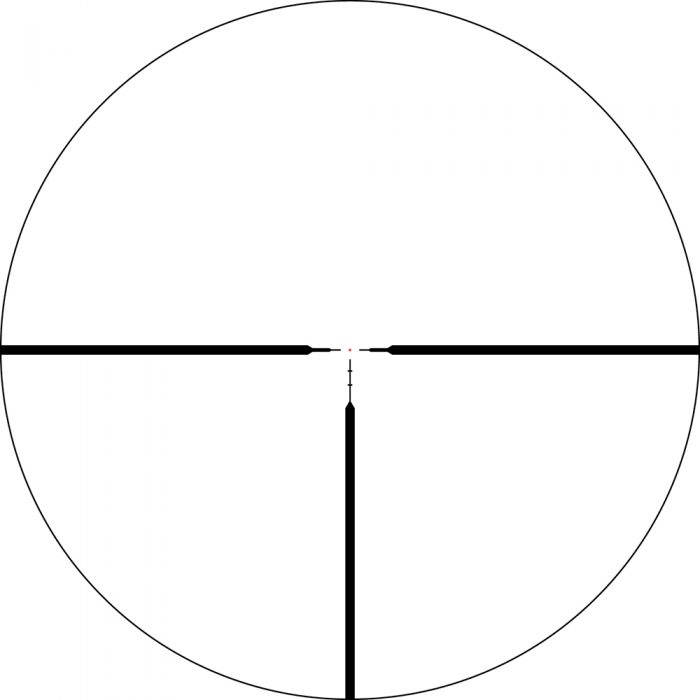

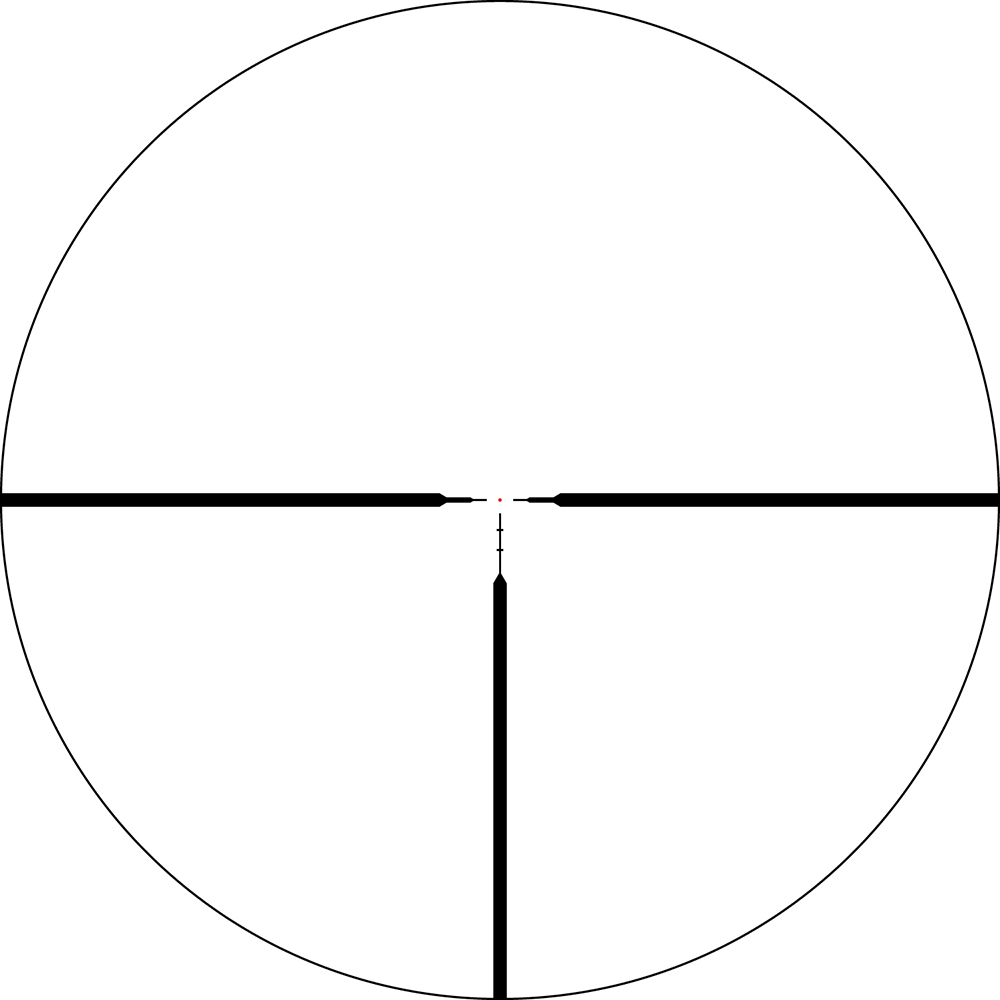

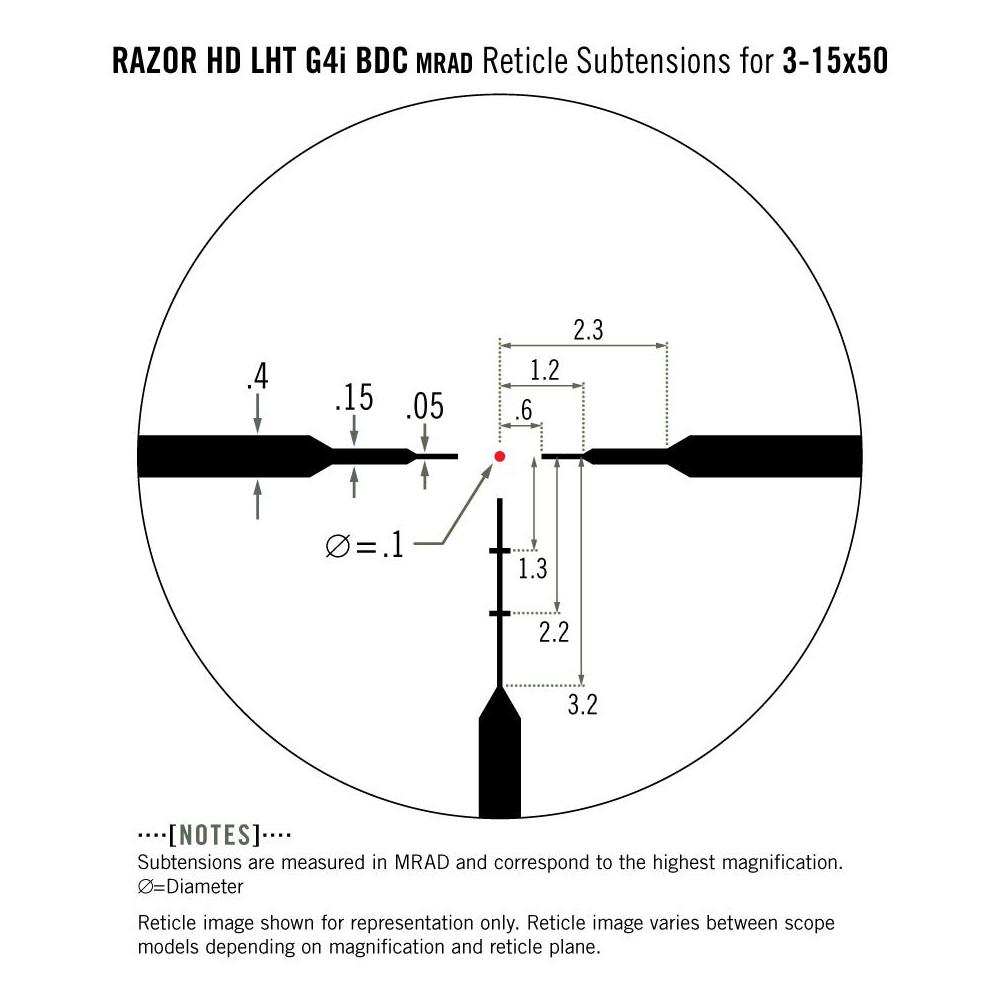

Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Illuminated Center Dot | Daylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions. |
CONSTRUCTION FEATURES |
|
Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Shockproof | Rugged construction withstands recoil and impact. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Locking Elevation Turret | Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending. |
Large Diameter Capped Windage Turret | Provide fast, accurate and easily read windage adjustments. Cap provides external protection for windage turret. |
CONVENIENCE FEATURES |
|
RevStop™ Zero System | Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments. |
