Description
Instructions on how to mount the side rail

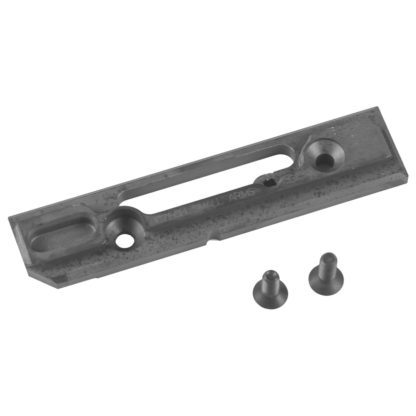

Center the side rail over the trigger pin (trigger pin in the receiver) using the cut-out in the side rail. Then push the side rail upwards (in the direction of the receiver cover). Using a drill press, center the drill bit in each hole of the side rail and drill into the receiver. The side rail will act as a guide to position your drill bit.
Additional info:
- Drill bit size: 4.2mm diameter
- Tap size: M5
- The hole closest to the barrel should be drilled to an approximate depth of 9.0mm (short screw is used in this hole)
- The hole closest to the buttstock will be completely drilled through the receiver wall (long screw is used in this hole)
- After tapping holes, use degreaser and secure side rail in place using high strength thread-locker on the two screws.
- Made by Czech Small Arms
* Please be advised this item is being dropped shipped and will be shipped separately from the rest of your order. Nevertheless, the drop shipped item/order is fully monitored during shipping by Zahal staff in cooperation with our worldwide partners.
