Description
| Magnification | 3 – 18 |
|---|---|
| Objective Lens Diameter | 44 mm |
| Eye Relief | 3.8 inches |
| Field of View | 39.3 – 6.7 feet/100 yards |
| Tube Size | 34 mm |
| Elevation Turret Style | Exposed |
| Windage Turret Style | Capped |
| Adjustment Graduation | 1/4 MOA |
| Travel per Rotation | 25 MOA |
| Max Elevation Adjustment | 154 MOA |
| Max Windage Adjustment | 62 MOA |
| Parallax Setting | 10 yards to infinity |
| Length | 13.3 inches |
| Weight | 27.3 ounces |
OPTICAL FEATURES |
|

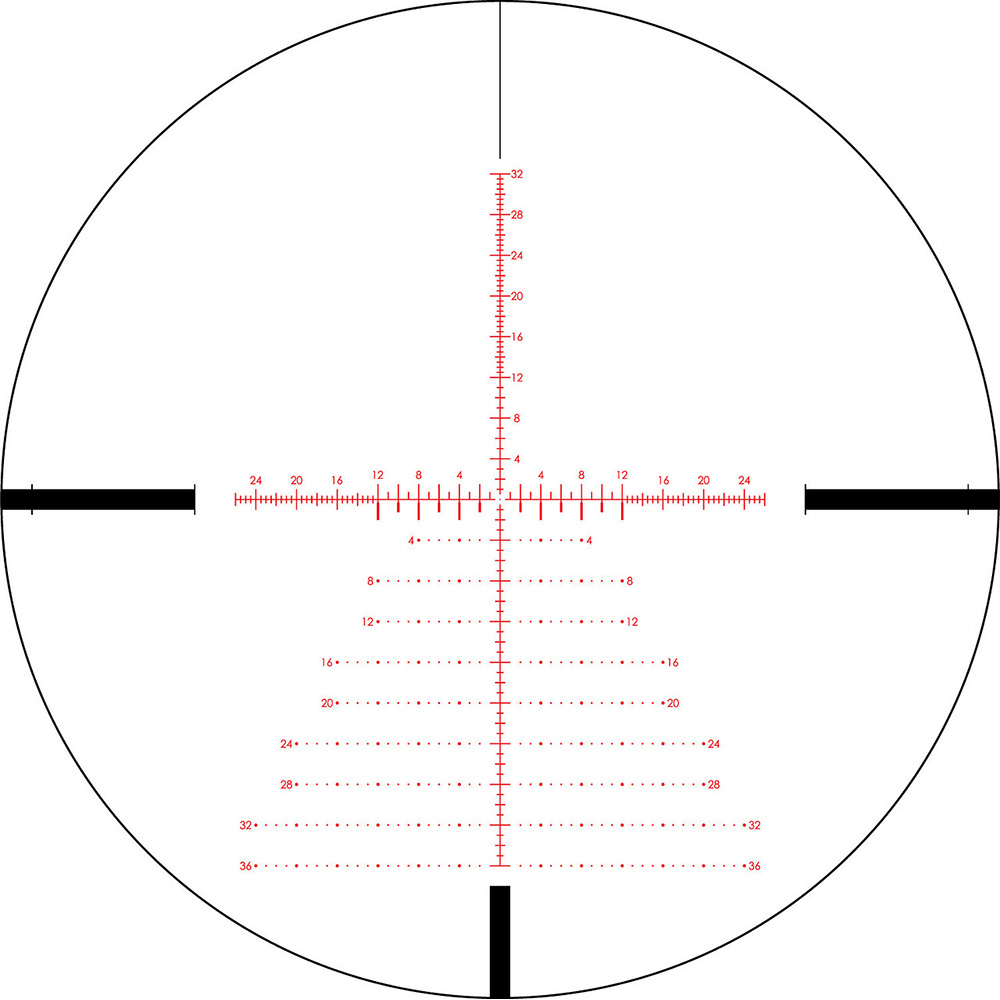

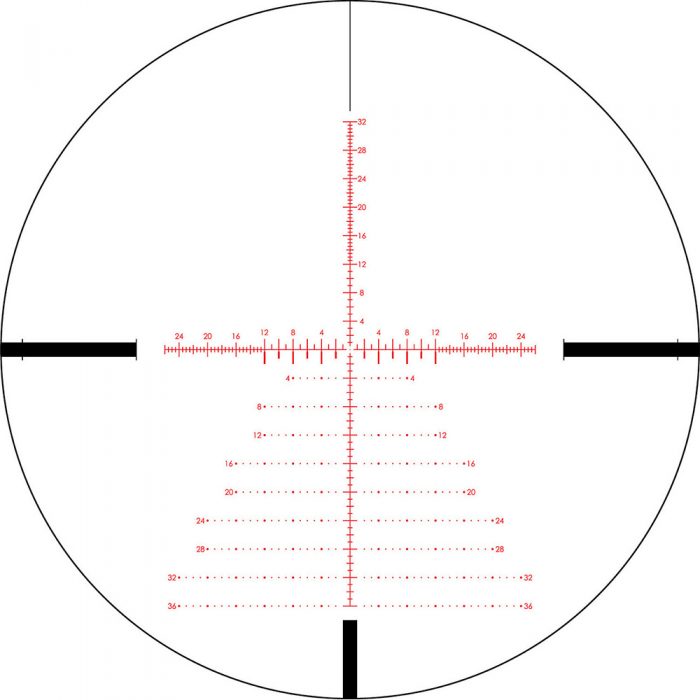

| First Focal Plane Reticle | Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications. |
| XD Optical System | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
| Illuminated Reticle | Provides precise aiming under low-light conditions. |
| RevStop™ Zero System | Patented streamlined design offers a toolless zero stop for rock-solid return to zero after turret adjustments. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
| Fully Multi-Coated Lenses | Anti-reflective coatings on all air-toglass surfaces provide increased light transmission for greather clarity and low-light performance. |
CONSTRUCTION FEATURES |
|
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Low Glare Matte Black Annodize | Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter’s position. |
| Nitrogen Gas Purged | Gas purged and O-ring sealed for fogproof and waterproof performance in all conditions. |
| Waterproof | Designed to withstand harsh weather conditions. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Shockproof | Designed to withstand the highest levels of recoil and impact. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
