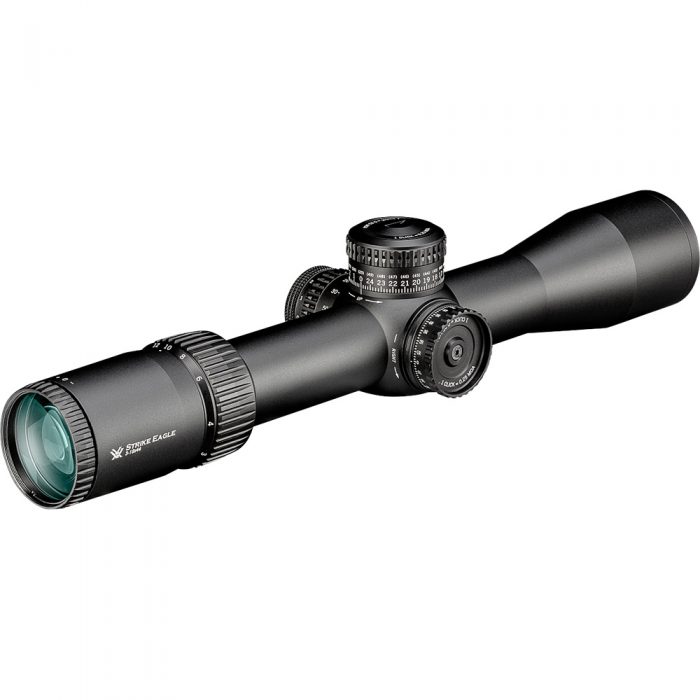

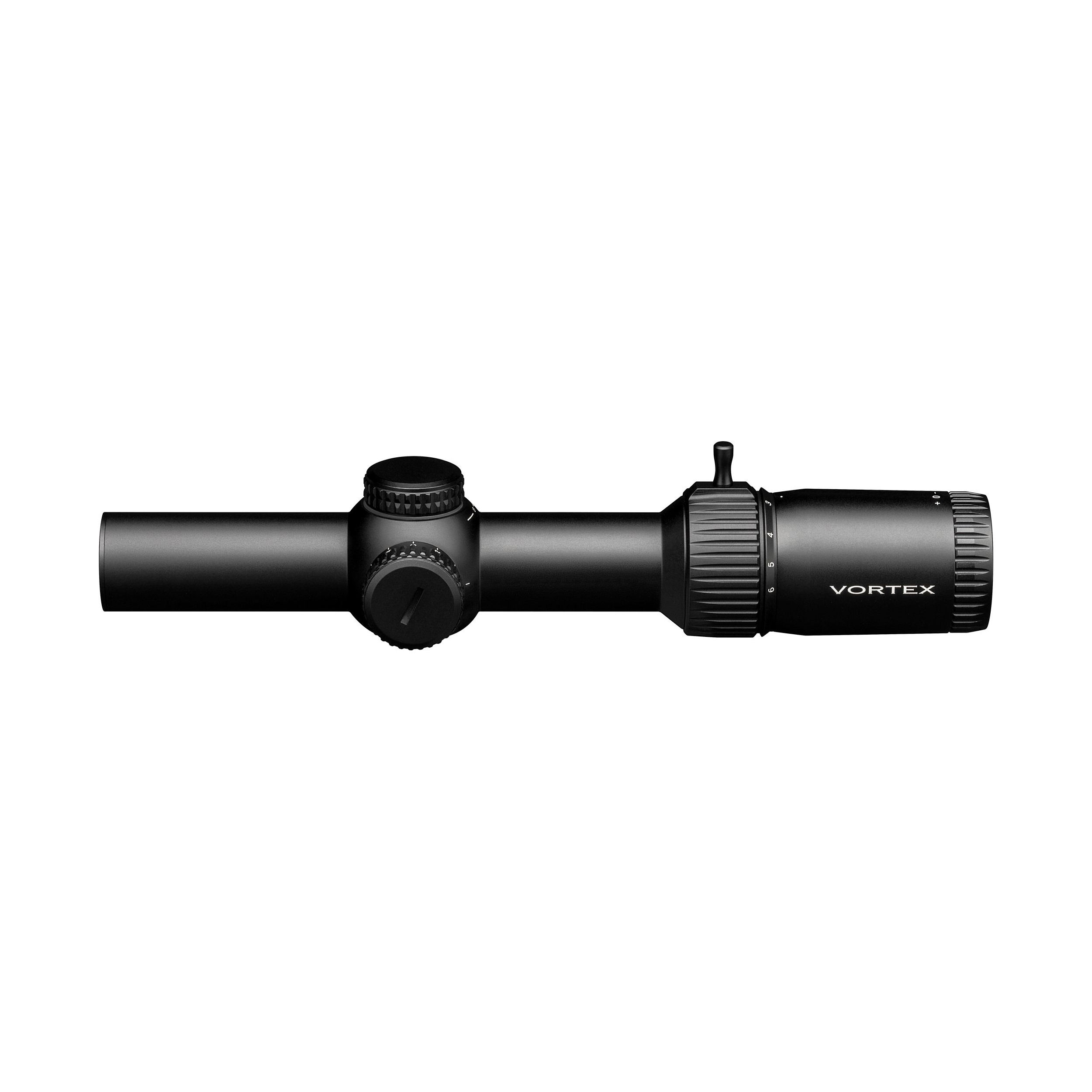

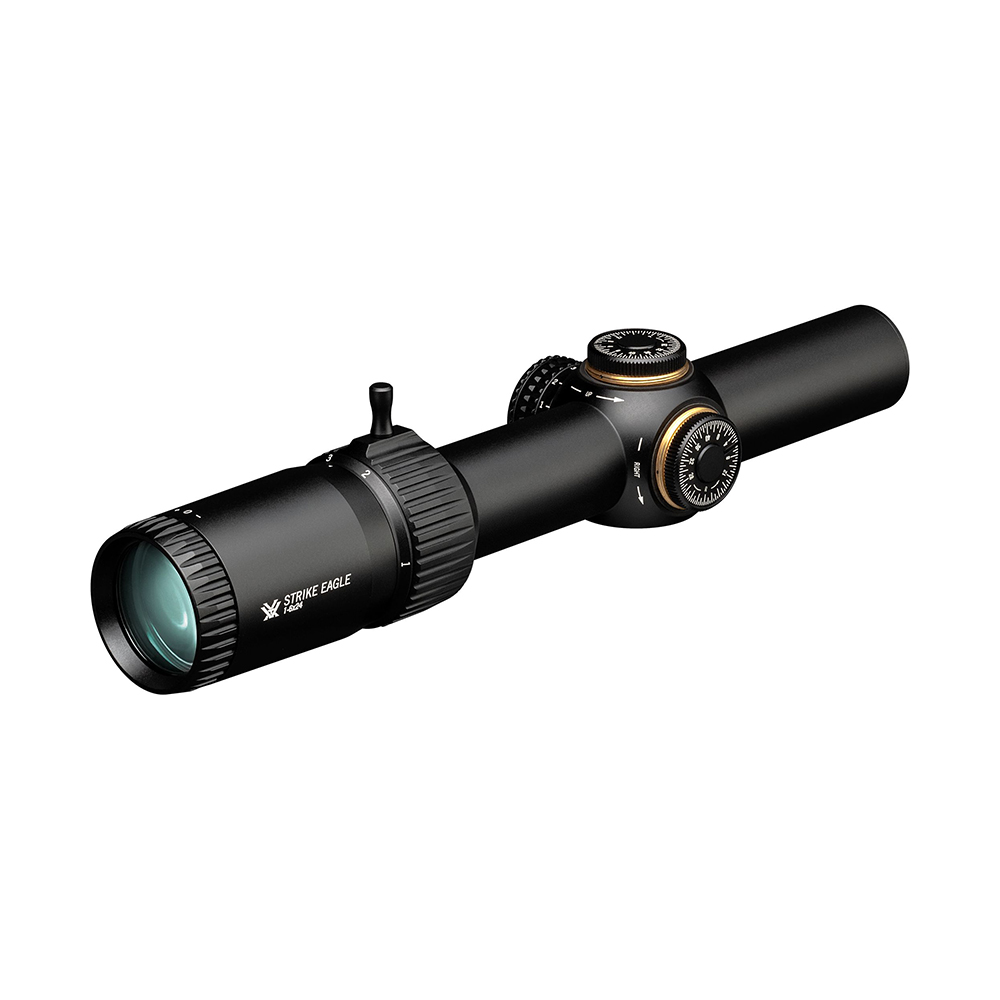

Description
| Magnification | 1 – 6 |
|---|---|
| Objective Lens Diameter | 24 mm |
| Eye Relief | 3.5 inches |
| Field of View | 116.5–19.2 feet/100 yards |
| Tube Size | 30 mm |
| Turret Style | Low Capped |
| Adjustment Graduation | 1/2 MOA |
| Travel per Rotation | 44 MOA |
| Max Elevation Adjustment | 140 MOA |
| Max Windage Adjustment | 140 MOA |
| Parallax Setting | Fixed @100 yards |
| Length | 10.5 inches |
| Weight | 18.5 ounces |
OPTICAL FEATURES |
|
| Illuminated Reticle | Provides precise aiming under low-light conditions |
| Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |

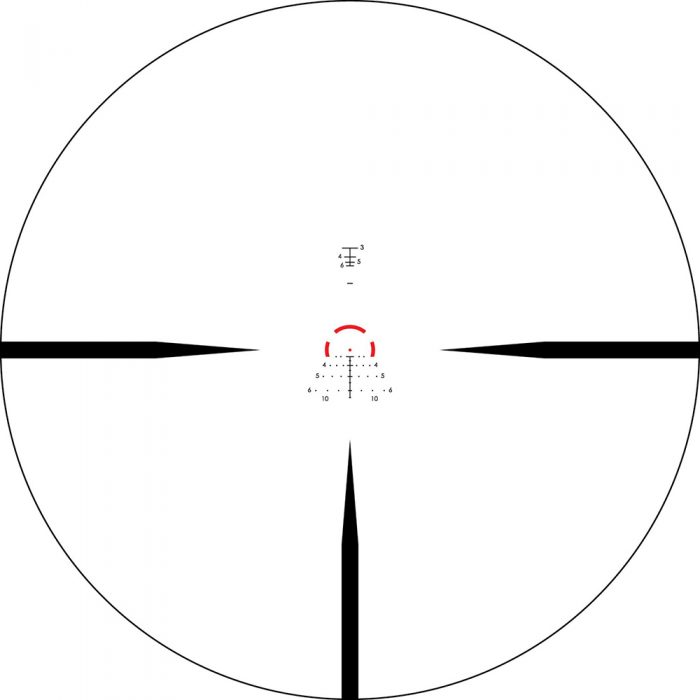

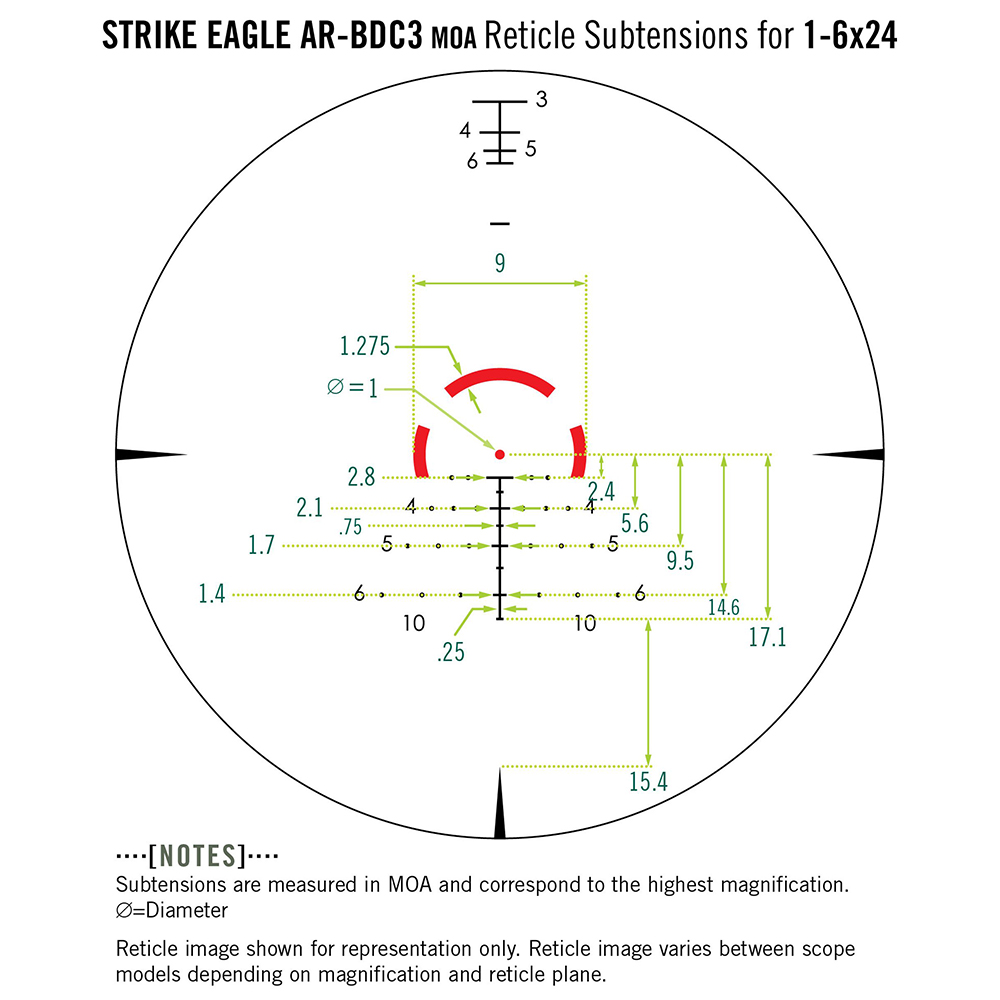

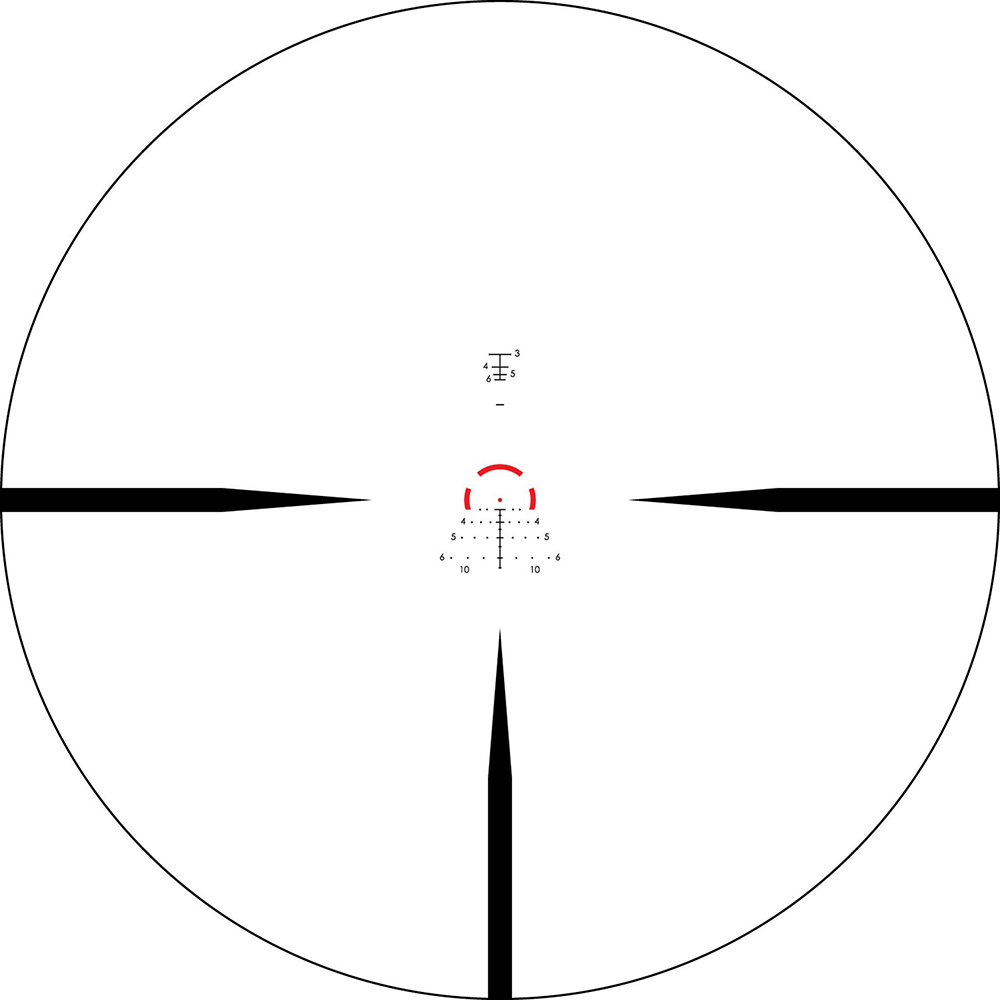

| Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
| Glass-Etched Reticle | Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability. |
CONSTRUCTION FEATURES |
|
| ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Waterproof – IPX7 | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Fogproof | Nitrogen gas purging prevents internal fogging over a wide range of temperatures. |
| Tube Size | 30 mm diameter provides maximized internal adjustment and strength. |
| Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
| Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
CONVENIENCE FEATURES |
|
| Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
